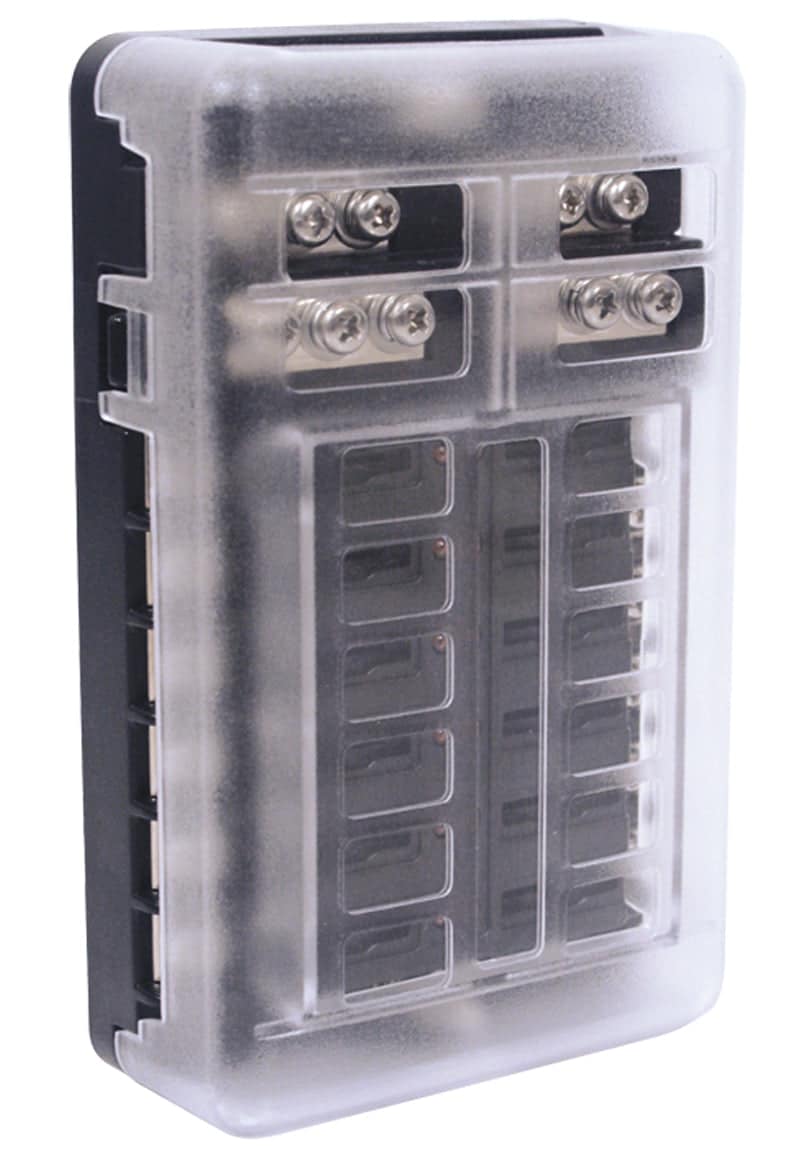

12 Way Fuse Box with Negative Buss Bar

12 Way Fuse Box with Negative Buss Bar – 220174

Fuse box designed for 24 hour circuits

Includes blown fuse indication LED’s and clear cover with areas for label stickers

Features:

• Accepts automotive blade fuses (ATP/ATC/ATO)
• Transparent cover with area for label stickers
• 60 pieces of assorted label stickers
• LED indication for blown fuses

Specifications

• Voltage rating: DC 32v Max
• AMP rating per branch: 30A (Screw terminals)
• Max cumulative AMP: 100A per block
• Terminal stud size: M5 (3/16″)
• Screw Size: M4 (5/32″)
• Dimensions (LxWxH): 140mm x 85mm x 36mm
